JUPITER

Type

Mistblowers

Tank Capacity

1500 / 2000 / 3000 l.

JUPITER

Type

Mistblowers

Tank Capacity

1500 / 2000 / 3000 l.

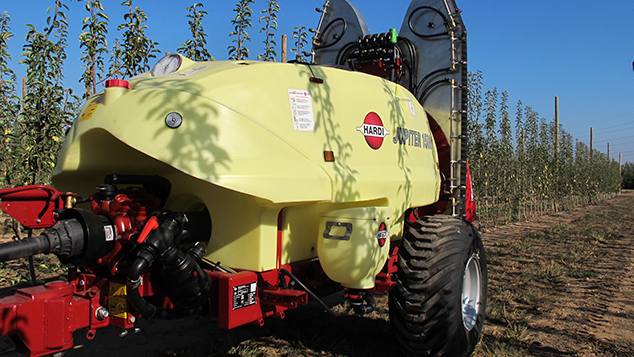

Multi-purpose

HARDI mistblowers lets you spray without compromise – all your different crops. Whatever you grow – from small bushes to large tree plantations.

Robust and simplicity
Benefit from the expertise gained with HARDI’s many years of worldwide experience in orchard spraying. Everything from tank design and built to the latest electronic control systems is reflected in our sprayers.


OPTIMUS

The OP15 as well as OP35 and OP55 are same application technology in the entire OPTIMUS application family. It is based on the same spraying devide in hydro pneumatic as well as in pneumatic applications. The main difference between OP15, OP35 and OP55 is the air supply drop leg that drives the droplet to the targeted plant.


Types of mistblowers

The JUPITER is available in the following mistblower types:

  • Orchard

Specifications

Tank, litres150020003000
Rinsing tank with 2 nozzles, l140190290
Clean water tank, l151515
Agitation2 Venturi tank bottom, another front and 2 in the wheel area2 Venturi tank bottom, another front and 2 in the wheel area2 Venturi tank bottom, another front and 2 in the wheel area
Level indicatorRound dry tank level indicatorRound dry tank level indicatorRound dry tank level indicator
Diaphragm HARDI pump364/7 - 145 l/min364/7 - 145 l/min364/7 - 145 l/min
Hydraulic brakesNoNoYes
Road homologationYesYesYes
Wheels340/55-16 12PR340/55-16 12PR400/60 - 15,5 14PR
Track width1,251,251,4
Overall width1,61,61,8
LightsYesYesYes
DrawbarTurnable "V" STDTurnable "V" STDTurnable HD
PTO ShaftT-300-1 HomokineticT-300-1 HomokineticT-300-1 Homokinetic
Operation unitCB/2 (2 fluid section with elec. valves with compensated returns)CB/2 (2 fluid section with elec. valves with compensated returns)CB/2 (2 fluid section with elec. valves with compensated returns)
Section filters2 inline filters2 inline filters2 inline filters
Fluid boxFB3610 (Standard)FB3610 (Standard)FB3610 (Standard)
Gearbox2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)
