NEPTUN PLUS

Type

Mistblowers

Tank Capacity

1000 / 1500 / 2000 / 3000 l.

NEPTUN PLUS

Type

Mistblowers

Tank Capacity

1000 / 1500 / 2000 / 3000 l.

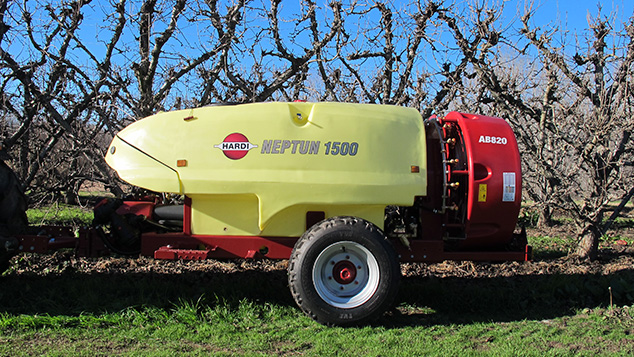

Multi-purpose

HARDI mistblowers lets you spray without compromise – all your different crops. Whatever you grow – from small bushes to large tree plantations.

Robust and simplicity
Benefit from the expertise gained with HARDI’s many years of worldwide experience in orchard spraying. Everything from tank design and built to the latest electronic control systems is reflected in our sprayers.

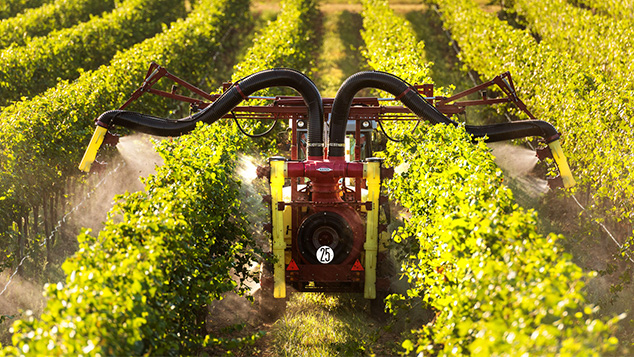

OPTIMUS

The OP15 as well as OP35 and OP55 are same application technology in the entire OPTIMUS application family. It is based on the same spraying devide in hydro pneumatic as well as in pneumatic applications. The main difference between OP15, OP35 and OP55 is the air supply drop leg that drives the droplet to the targeted plant.


Types of mistblowers

The ZEBRA is available in the following mistblower types:

  • Orchard
  • Vine

Specifications

Tank, litres1000150020003000
Rising tank, litres508090130
Rinsing nozzle1 nozzle1 nozzle1 nozzle1 nozzle
Clean water tank15 l15 l15 l15 l
Agitation2 Venturi tank bottom and another frontal2 Venturi tank bottom and another frontal2 Venturi tank bottom and another frontal2 Venturi tank bottom and another frontal
Level indicatorRound dry tank level indicatorRound dry tank level indicatorRound dry tank level indicatorRound dry tank level indicator
Piston pump 40 barsUG 102 l/minUG 123 l/minUG 123 l/minUG 147 l/min
Hydraulic breaksNoNoNoYes
Road homologationYesYesYesYes
Wheels10/80x12-10PR10/75x15-10PR10/75x15-10PR11,5/80-16PR
Track width, m1,251,251,251,4
Overall width, m1,51,61,61,7
LightsYesYesYesYes
DrawbarFork hitchFork hitchFork hitchFork hitch
PTO shaftT300 - StandardT300 - StandardT300 - StandardT300 - Standard
Operating unitCA/2 (2 fluid sections with electric valves with compensated returns)CA/2 (2 fluid sections with electric valves with compensated returns)CA/2 (2 fluid sections with electric valves with compensated returns)CA/2 (2 fluid sections with electric valves with compensated returns)
Section filters1 central filter1 central filter1 central filter1 central filter
Fluid boxFB3610 (Standard)FB3610 (Standard)FB3610 (Standard)FB3610 (Standard)
Gearbox2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)
