ZATURN COMPACT

Type

Mistblowers

Tank Capacity

600 / 800 / 1000 / 1300 l.

ZATURN COMPACT

Type

Mistblowers

Tank Capacity

600 / 800 / 1000 / 1300 l.

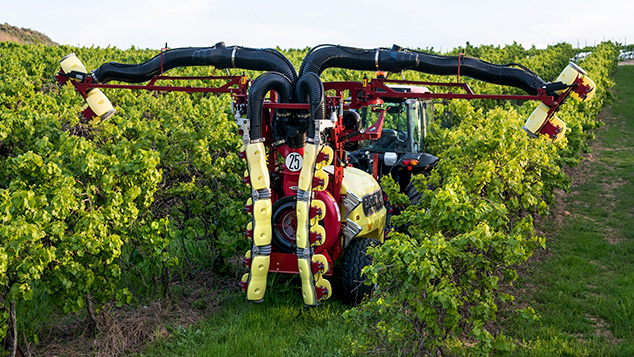

Multi-purpose

HARDI mistblowers lets you spray without compromise – all your different crops. Whatever you grow – from small bushes to large tree plantations.

Robust and simplicity
Benefit from the expertise gained with HARDI’s many years of worldwide experience in orchard spraying. Everything from tank design and built to the latest electronic control systems is reflected in our sprayers.

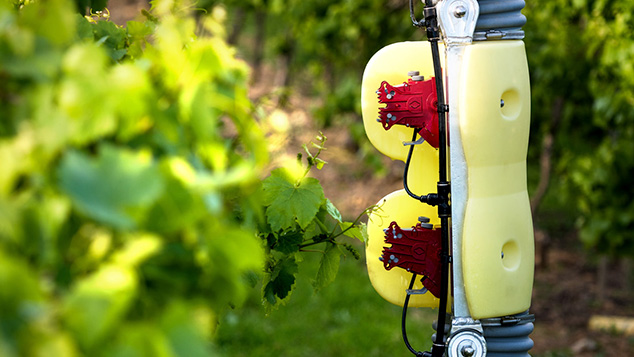

OPTIMUS

The OP15 as well as OP35 and OP55 are same application technology in the entire OPTIMUS application family. It is based on the same spraying devide in hydro pneumatic as well as in pneumatic applications. The main difference between OP15, OP35 and OP55 is the air supply drop leg that drives the droplet to the targeted plant.


Types of mistblowers

The ZEBRA is available in the following mistblower types:

  • Orchard
  • Vine

Specifications

Tank, litres60080010001300
Rinsing tank, litres90909090
Rinsing nozzle2 nozzles2 nozzles2 nozzles2 nozzles
Clean water tank15 l15 l15 l15 l
Agitation2 Venturi tank bottom and another frontal2 Venturi tank bottom and another frontal2 Venturi tank bottom and another frontal2 Venturi tank bottom and another frontal
Level indicatorRound dry tank level indicatorRound dry tank level indicatorRound dry tank level indicatorRound dry tank level indicator
Diaphragm HARDI pump1303/ 9 - 114 l/min1303/ 9 - 114 l/min1303/ 9 - 114 l/min1303/ 9 - 114 l/min
Hydraulic brakesNoNoNoNo
Road homologationYesYesYesYes
Wheels26/12x12-10PR26/12x12-10PR26/12x12-10PR26/12x12-10PR
Track width, m1,1 - 1,3 m1,1 - 1,3 m1,1 - 1,3 m1,1 - 1,3 m
overall width, m1,4 - 1,6 m1,4 - 1,6 m1,4 - 1,6 m1,4 - 1,6 m
LightsYesYesYesYes
DrawbarTurnable "V" STDTurnable "V" STDTurnable "V" STDTurnable "V" STD
PTO ShaftT300 - 1 HomokineticT300 - 1 HomokineticT300 - 1 HomokineticT300 - 1 Homokinetic
Operating unitCA/2 (2 fluid sections with elec. valves with compensated returns)CA/2 (2 fluid sections with elec. valves with compensated returns)CA/2 (2 fluid sections with elec. valves with compensated returns)CA/2 (2 fluid sections with elec. valves with compensated returns)
Section filters2 inline filters2 inline filters2 inline filters2 inline filters
Fluid boxFB3610 (Standard)FB3610 (Standard)FB3610 (Standard)FB3610 (Standard)
Gearbox2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)
