ZEBRA

Type

Mistblowers

Tank Capacity

300 / 400 / 600 / 800 l.

ZEBRA

Type

Mistblowers

Tank Capacity

300 / 400 / 600 / 800 l.

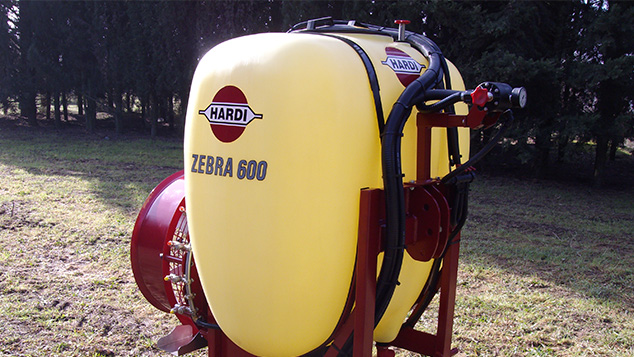

Multi-purpose

HARDI mistblowers lets you spray without compromise – all your different crops. Whatever you grow – from small bushes to large tree plantations.

Robust and simplicity
Benefit from the expertise gained with HARDI’s many years of worldwide experience in orchard spraying. Everything from tank design and built to the latest electronic control systems is reflected in our sprayers.

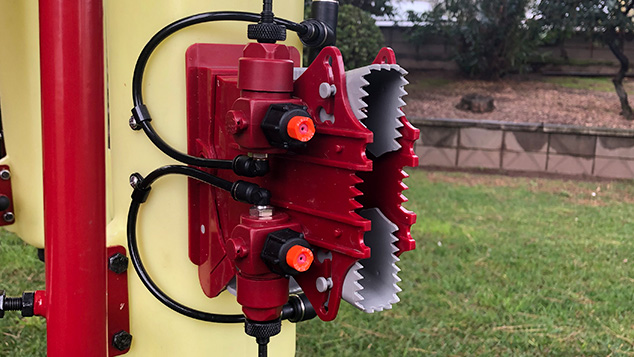

OPTIMUS

The OP15 as well as OP35 and OP55 are same application technology in the entire OPTIMUS application family. It is based on the same spraying devide in hydro pneumatic as well as in pneumatic applications. The main difference between OP15, OP35 and OP55 is the air supply drop leg that drives the droplet to the targeted plant.


Types of mistblowers

The ZEBRA is available in the following mistblower types:

  • Orchard
  • Vine
  • Cannon

Specifications

Tank, litres300400600800
Diaphragm HARDI pump321 / 10 - 20 bar - 73 l /min321 / 10 - 20 bar - 73 l /min321 / 10 - 20 bar - 73 l /min321 / 10 - 20 bar - 73 l /min
LightsNoNoNoNo
PTO ShaftT300 - StandardT300 - StandardT300 - StandardT300 - Standard
Operating unitCA/2 (2 fluid sections with electric valves with compensated returns)CA/2 (2 fluid sections with electric valves with compensated returns)CA/2 (2 fluid sections with electric valves with compensated returns)CA/2 (2 fluid sections with electric valves with compensated returns)
Section filters1 central filter1 central filter1 central filter1 central filter
Fluid boxFB3610 (Standard)FB3610 (Standard)FB3610 (Standard)FB3610 (Standard)
