ZENIT

Type

Mistblowers

Tank Capacity

400 / 600 / 1000 / 1200 l.

ZENIT

Type

Mistblowers

Tank Capacity

400 / 600 / 1000 / 1200 l.

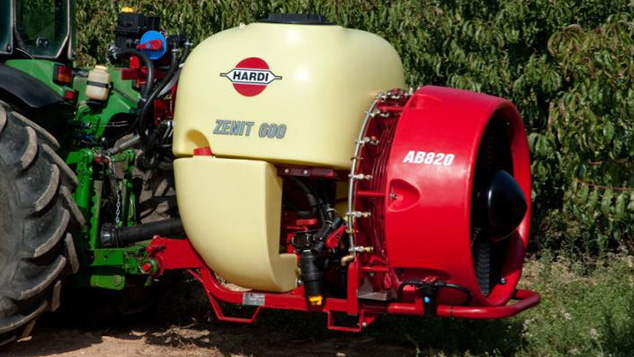

Multi-purpose

HARDI mistblowers lets you spray without compromise – all your different crops. Whatever you grow – from small bushes to large tree plantations.

Robust and simplicity
Benefit from the expertise gained with HARDI’s many years of worldwide experience in orchard spraying. Everything from tank design and built to the latest electronic control systems is reflected in our sprayers.

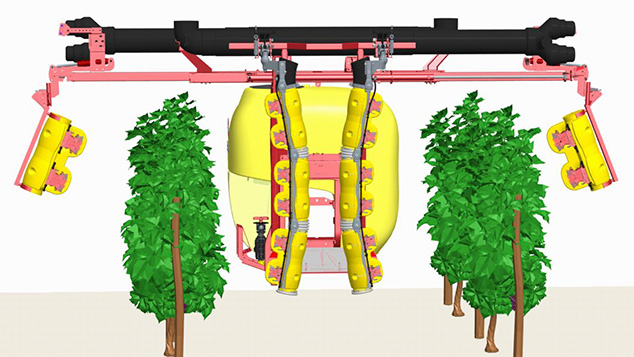

OPTIMUS

The OP15 as well as OP35 and OP55 are same application technology in the entire OPTIMUS application family. It is based on the same spraying devide in hydro pneumatic as well as in pneumatic applications. The main difference between OP15, OP35 and OP55 is the air supply drop leg that drives the droplet to the targeted plant.


Types of mistblowers

The ZENIT is available in the following mistblower types:

  • Orchard
  • Vine
  • Rail
  • Cannon

Specifications

Tank, litres60040010001200
Rinsing tank, litres6040100100
Rinsing nozzle1 nozzle1 nozzle1 nozzle1 nozzle
Clean water tank15 l15 l15 l15 l
Agitation1 venturi bottom of the tank, 2 in front1 venturi bottom of the tank, 2 in front1 venturi bottom of the tank, 2 in front1 venturi bottom of the tank, 2 in front
Level indicatorTransparent tube levelTransparent tube levelTransparent tube levelTransparent tube level
Diaphragm HARDI pump321/10 - 20 bar - 73 l/min321/10 - 20 bar - 73 l/min364/7 - 20 bar - 146 l/min364/7 - 20 bar - 146 l/min
LightsYesYesYesYes
PTO ShaftT300 - StandardT300 - StandardT300 - StandardT300 - Standard
Operating unitCA/2 (2 fluid section with electric valves with compensated returns)CA/2 (2 fluid section with electric valves with compensated returns)CA/2 (2 fluid section with electric valves with compensated returns)CA/2 (2 fluid section with electric valves with compensated returns)
Section filters1 central filter1 central filter1 central filter1 central filter
FluidboxFB3610 (Standard)FB3610 (Standard)FB3610 (Standard)FB3610 (Standard)
Gearbox2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)2 gears + neutral (3,5 / n / 4,4)

Show full specifications
