MASTER

Type

Lift-mounted

Tank Capacity

1000 / 1200 / 1500 / 1800 l

Boom Width

12 - 18 m

Boom Types

PRO, HYS, HYS AIR STREAM

MASTER

Type

Liftmounted

Tank Capacity

1000 / 1200 / 1500 / 1800 l

Boom Width

12 - 18 m

Boom Types

PRO, HYS, HYS AIR STREAM

Master of performance

The MASTER is a popular choice for professional farmers looking for an economic lift-mounted sprayer. Several upgrades have led to the current version – a reliable, robust lift-mounted sprayer.

Tried, tested and trusted, the MASTER is particularly suitable for farms with smaller or irregularly shaped fields.

From its integrated QuickHitch for easy and safe tractor coupling to its centrally located and logically designed MANIFOLD with all fluid functions within easy reach, the MASTER is easy to operate and service.

A slim tank design and compactly folded booms ensure optimal weight distribution and tractor stability during spraying and road transport.

The MASTER is the only lift-mounted sprayer available with an air-assistance boom system for better drift control.

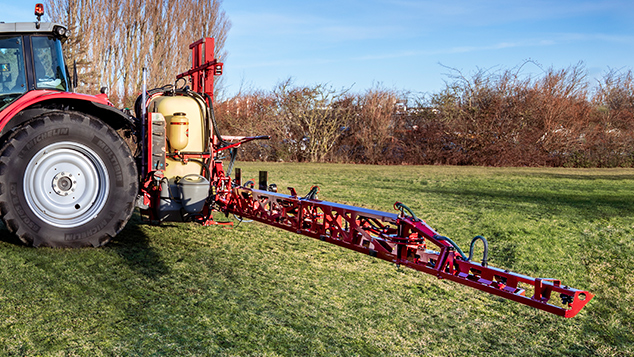

PRO boom

Strong, simple and steady
The PRO series will suit farmers looking for a regular but high-performing boom. An integrated lattice steel structure offers strength and rigidity for steady boom movement and application precision, even in challenging terrain. This hydraulic boom is easy to operate and requires little maintenance. Trapeze suspension increases lifespan and boom stability.

Regular hydraulics
The PRO boom is available in two models – a standard VHY model driven by tractor hydraulics and an upgraded VHZ model operated by electro-hydraulics, directly controlled via a compact panel in the tractor cabin.

The VHY boom offers boom lift, fold and optional slant, to which the VHZ model adds several extra functions such as folding of a single boom arm or sections as well as tilting of either boom arm.

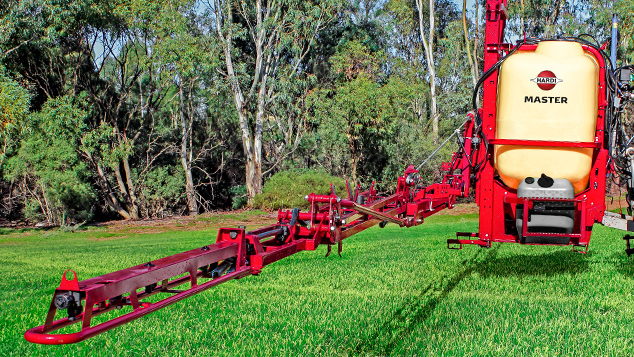

HYS boom

Flexible, light and compact
The HYS series is for farmers seeking boom adaptability. With fast, on-the-go fold of boom, arm or outer sections, this hydraulic boom with trapeze suspension will please farmers with irregular or challenging fields, paddocks, terrains or obstacles. It is a light but robust boom, which is easy to operate and requires little maintenance.

All models offer folding
The HYS boom is available in two versions – a standard HYS version driven by tractor hydraulics and an upgraded HYSZ version operated by electro-hydraulics, controlled directly from the tractor cabin using a compact panel. Both models offer boom lift, flexible fold/tilt and optional slant.

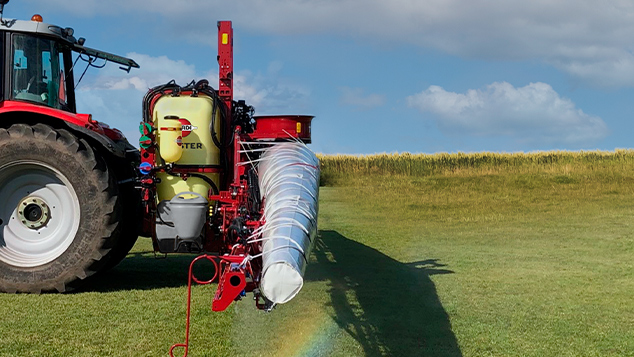

HYS AIR STREAM

Control drift with air
The HYS AIR STREAM boom is fitted with a blower unit and an inflatable air bag running the length of the boom. The air exits the bag through openings along its underside, creating forward-angled air streams, which hit the spray before it reaches the crop. The air distribution along the bag is very even, creating a curtain-like airflow that focuses the spray onto the crop.

The HYS AIR STREAM is available in two versions – a standard HYS driven by tractor hydraulics and an upgraded HYSZ operated by electro-hydraulics directly from the tractor cabin.

Both models offer boom lift, optional slant and flexible fold/tilt of the entire boom, one arm or outer sections – with or without air – for easy passage of obstacles in the field.

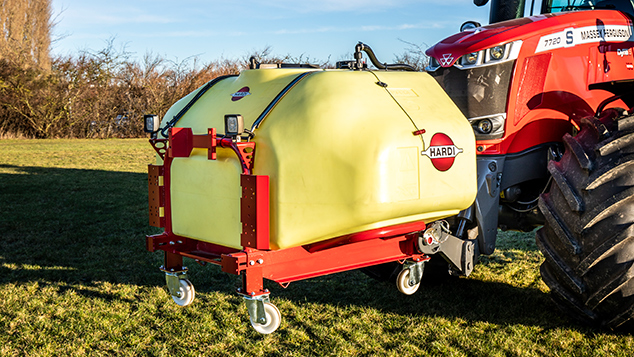

FrontTank

Larger capacity
The HARDI FrontTank will increase your spray capacity without jeopardising the tractor’s weight distribution, balance and manoeuvrability – especially suitable for hilly terrain or smaller fields.

The FrontTank can be used as a simple counterweight or to give you more flexibility in your spray jobs – either as extra water supply for larger spray jobs or as a second chemical tank independent from or combined with the main tank.

The optional 1200 l FrontTank is made of high impact polyethylene. It comes as a kit, complete with a category 2-linked frame and a 135 l RinseTank. The dry level indicator on top of the tank is easily visible from the cabin, and an optional Agitation Pump Kit enables continuous agitation and cleaning of the FrontTank.


Controllers

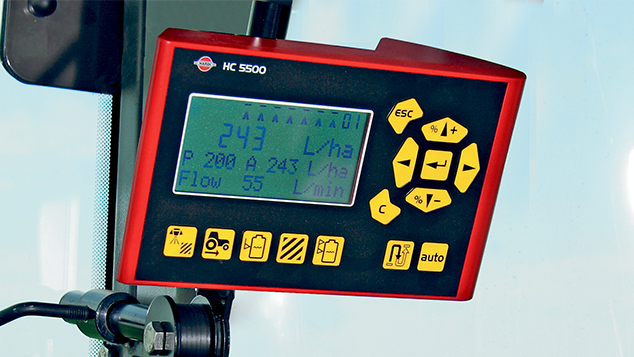

HC 5500 – Automatic control
The trusted HC 5500 computer literally puts you in the driver’s seat. This electronic controller is an optional add-on to the Spray box to enhance the MASTER’s liquid system. Powerful yet simple to operate, it offers precise application control – saving time and effort by providing the farmer with continuous updates on a spray job. With its LogicMenu, bright display and 98 trip registers, the HC 5500 keeps track of all relevant spray parameters, sounding a warning at changes in spray pressure, speed or other parameters. Application rate can be easily adjusted on the go, especially valuable for the changing canopy conditions in orchards and vineyards.

Registers and other data can be transferred to external devices, and the HC 5500 is prepared for communication with precision tools such as guidance mapping and remote sensors.


AutoSectionControl

To save chemicals
The HARDI SprayRover 570 is a stand-alone AutoSectionControl device working in combination with the HC 5500 controller.

Guided by the included GPS antenna, the SprayRover automatically opens and closes boom sections on the go, eliminating overlaps or skips when spraying in wedges, at the headland or when driving around obstacles in the field.

The advantages are obvious in terms of reduced operator stress and fatigue. Higher efficiency also means better crops, less waste and money spent on water and plant protection products – to the benefit of the farmer as well as the environment.

AutoSectionControl is fast becoming one of the most popular features on high-tech sprayers. Here we offer it as an add-on to prepare your MASTER for the future.


Get the MASTER brochure

See all the information about the MASTER including full specifications, in-depth information  and much more!

Download your MASTER brochure

Your local HARDI dealer

HARDI Dealer network of more than 1500 locations around the world ensures quality, service and spareparts to farmers in more than 100 countries.

Find your local HARDI Dealer

Specifications

Tank size (net/gross)1000 (1100)1200 (1320)1500 (1600)1800 (1895)
Pump 364 (194 l/min)····
Weight, kgWeight, kgWeight, kgWeight, kgWeight, kg
PRO 12 m - 12.5 m92295510771089
PRO 15 m979101211341146
PRO 18 m1037107011921204
HYS 12 m773806928940
HYS 15 m88291510371049
HYS 18 m92695910811093
TWIN STREAM 12 m933966
TWIN STREAM 15 m10221055
Measurements, cmDA x B x CA x B x CA x B x CA x B x C
PRO 12 m - 12.5225153x253x271166x253x271183x253x271183x253x271
PRO 15 m225153x253x271166x253x271183x253x271183x253x271
PRO 18 m225153x253x296166x253x296183x253x298183x253x298
HYS 12 m235155x253x271166x253x271183x253x271183x253x271
HYS 15 m245155x253x271166x253x271183x253x271183x253x271
HYS 18 m255155x255x315166x255x315183x255x315183x255x315
TWIN STREAM 12 m260190x260x271203x260x271
TWIN STREAM 15 m260190x260x348203x260x271

A = Total length in cm

B = Maximum transport width in cm

C = Total height in cm

D = Transport width boom in cm
